What Is Bluetooth Low Energy?

Bluetooth Low Energy Explainer

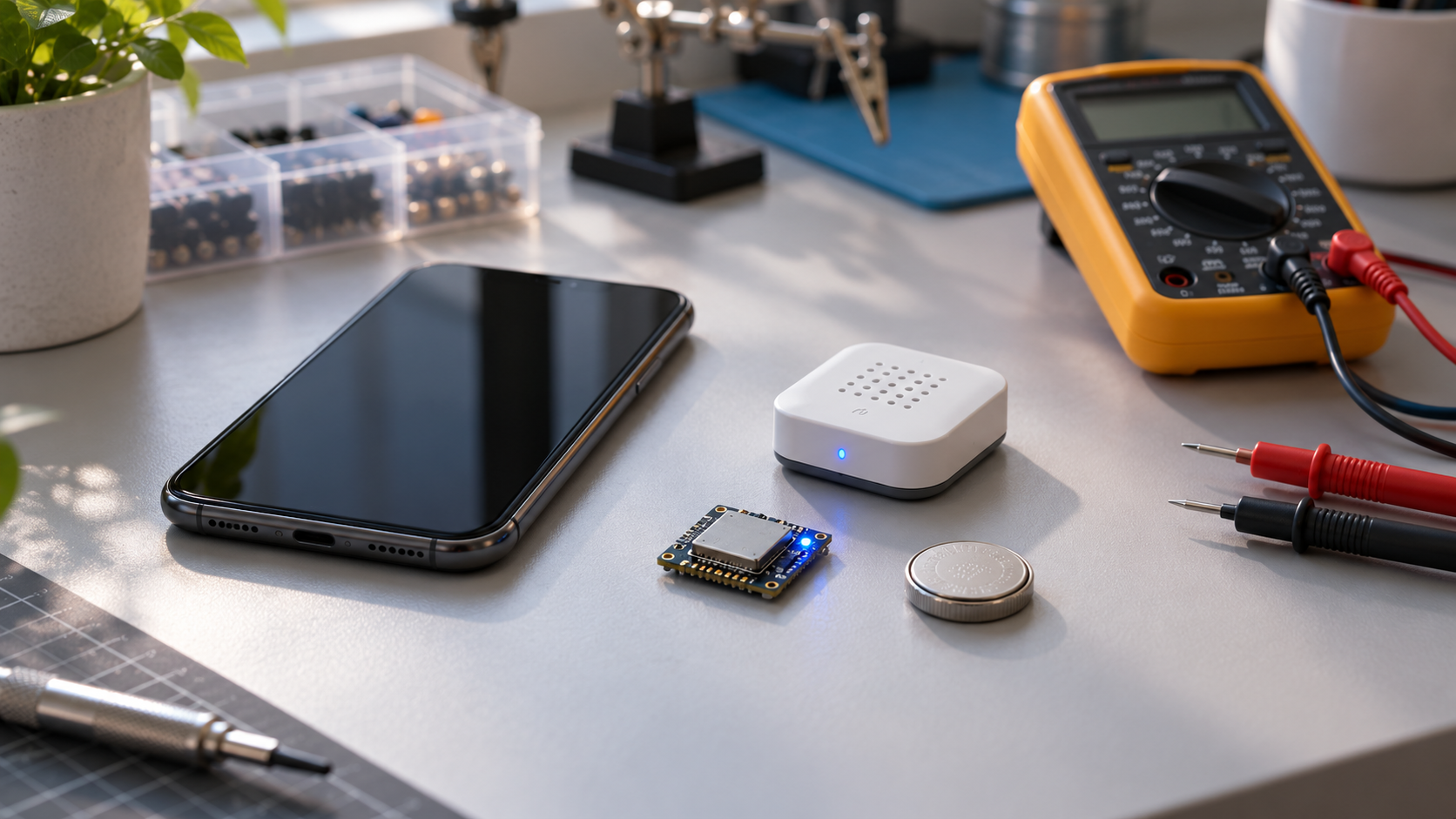

Bluetooth Low Energy, often shortened to Bluetooth LE, is a wireless system designed for devices that exchange modest amounts of data while using very little energy. It shares the 2.4-gigahertz band with classic Bluetooth and Wi-Fi, but its radio procedures, packet formats, and application model are built around brief activity. A sensor can wake, transmit a small message, listen for a response, and return to sleep. That pattern lets coin-cell devices, wearables, beacons, keyboards, and medical accessories operate far longer than if their radios remained continuously active.

Many Bluetooth LE interactions begin with advertising. A device transmits short packets on dedicated advertising channels so nearby scanners can discover it without a prior connection. An advertisement can identify available services, broadcast a small measurement, or invite another device to connect. The transmitter chooses an advertising interval that balances discovery speed against energy use. Faster advertising is easier to find but wakes the radio more often. Random timing is added so several devices are less likely to transmit at exactly the same instant.

When two devices need an ongoing exchange, an initiator requests a connection. They agree on a connection interval and on windows when both radios will wake. During each connection event, the devices can exchange packets and then sleep until the next scheduled event. A peripheral may skip permitted events when it has nothing to send, extending battery life further. The connection also uses adaptive frequency hopping across data channels, avoiding frequencies that appear busy or unreliable. A central device can maintain scheduled connections with several peripherals.

Application data is commonly organized with the Attribute Protocol and the Generic Attribute Profile. Information is exposed as services containing characteristics, such as a heart-rate measurement, battery level, or configuration value. A client can read or write a characteristic, or subscribe so the server sends notifications when a value changes. Standard services improve interoperability, while custom services let manufacturers define product-specific behavior. This structure does not make every Bluetooth product automatically compatible; the applications still need to agree on services, data formats, and security.

Bluetooth LE can protect a link with pairing, authentication, and encryption. Depending on device capabilities, users may compare numbers, enter a passkey, tap a confirmation, or use an out-of-band method. Pairing can create long-term keys so trusted devices reconnect without repeating the whole process. Privacy features can rotate device addresses to reduce passive tracking. Security quality depends on the chosen pairing method, correct key storage, software updates, and the sensitivity of the service. A broadcast advertisement is not automatically confidential merely because it uses Bluetooth.

Low energy does not mean zero energy or unlimited range. Battery life depends on transmit power, advertising frequency, connection interval, packet size, sensor workload, processor sleep current, and environmental interference. Longer range generally requires more link margin, coded signaling, or repeated airtime. Large file transfers keep the radio active and may favor Wi-Fi or classic Bluetooth. Bluetooth LE is strongest when messages are compact, latency needs are moderate, and the device can spend most of its time asleep.

The central idea is scheduled scarcity. Bluetooth LE limits when a radio must listen, keeps routine packets small, and gives applications a structured way to expose data. Advertising supports discovery and one-to-many broadcasts; connections support reliable, encrypted exchanges; services and characteristics describe meaning. Designers choose intervals and security appropriate to the product rather than relying on one universal setting. That combination of short radio events and long sleep periods is what turns an ordinary 2.4-gigahertz link into a practical platform for tiny battery-powered devices.
