Medical Ultrasound Explainer
Medical ultrasound uses high-frequency sound waves to examine structures inside the body. A probe sends sound into tissues and receives returning echoes, which a computer converts into images. Diagnostic ultrasound does not use ionizing radiation. It is familiar from pregnancy care, but it also helps assess organs, blood vessels, muscles, and other tissues. The usefulness of a scan depends on the particular structure and clinical question.
The image is built from differences in how sound travels through and reflects from tissues. The time taken for an echo to return helps estimate depth. Gel improves contact between the probe and skin by reducing intervening air. The operator moves and angles the probe to obtain different views, often observing movement in real time. A still image is therefore only one part of an examination that may involve many views.
Doppler ultrasound adds information about movement, particularly blood flow. It can help assess the direction and speed of flow in vessels or the heart. Colors on a Doppler display represent information assigned by the imaging system; they are not a literal photograph of red and blue blood. Other ultrasound methods can provide additional measurements, but each must be interpreted within the examination and clinical context.
Most familiar scans use a probe on the skin, while some examinations use an internal probe or combine ultrasound with another procedure. Preparation varies: one scan may require fasting, another a full bladder, and another no special preparation. The facility’s instructions reflect what is being examined. Ultrasound has limitations, including interference from air and bone, so another imaging method may be needed when it cannot answer the question adequately.

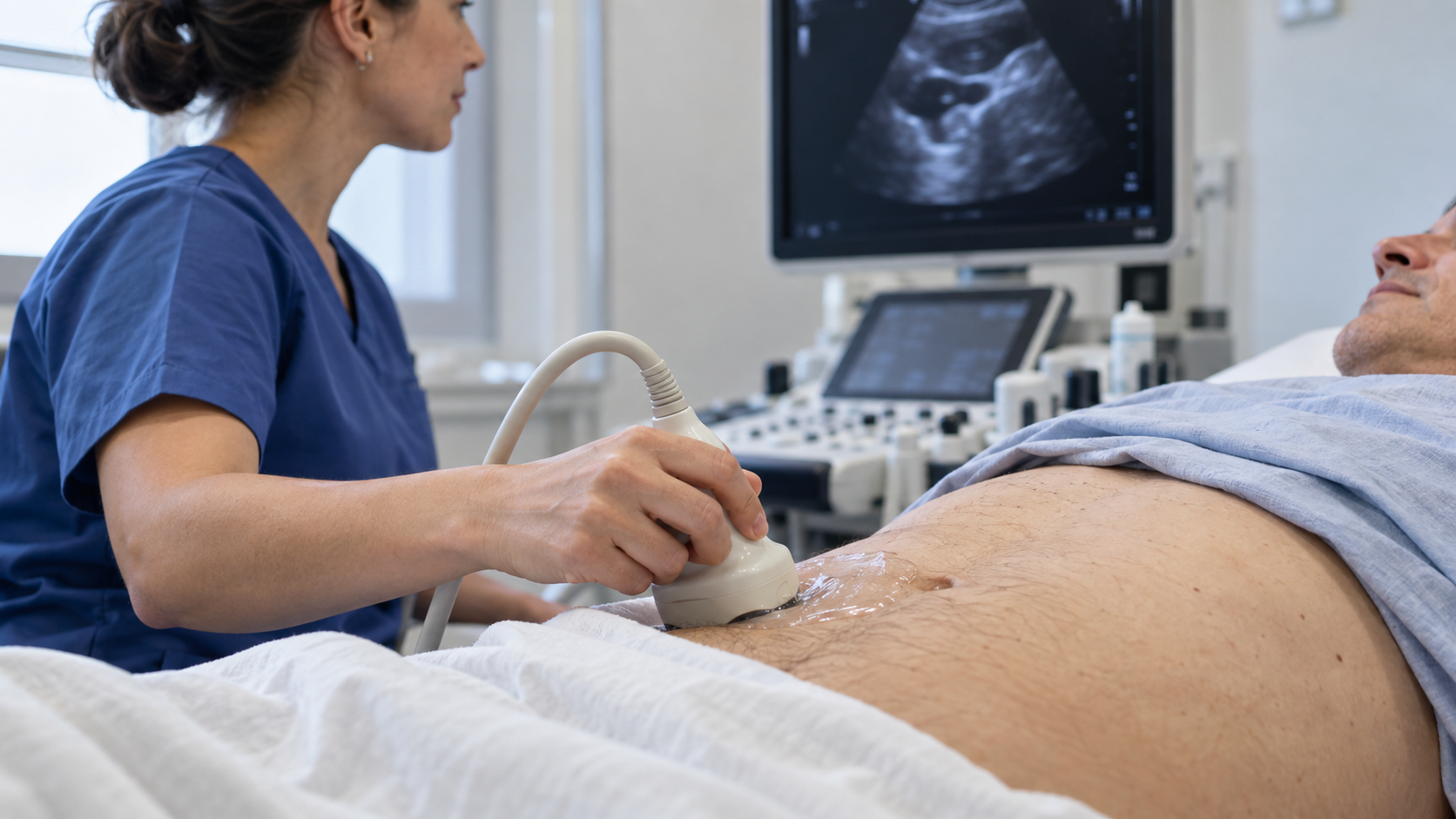

For an external scan, the patient is positioned to expose the area being assessed while remaining appropriately covered. The operator applies gel and moves the probe across the skin. Pressure may be uncomfortable over a tender area, and the person can tell the operator about discomfort. The team may ask for a change in position or a brief breath hold to improve the view.
Internal examinations use a probe designed for the relevant route and clinical purpose. The team explains the procedure and obtains consent; a chaperone may be requested. Someone should be able to ask questions about what will happen and discuss concerns. The fact that several examinations are called ultrasound does not mean their preparation, experience, or potential discomfort is identical.
Ultrasound is useful for many soft tissues and fluid-containing structures. It can show movement, help investigate a lump or pain, and guide selected procedures. Real-time imaging allows an operator to follow the position of a needle during some interventions. That is different from assuming that every ultrasound scan is an invasive procedure; many are entirely external diagnostic examinations.
Sound does not pass equally well through every part of the body. Gas can obstruct views, and bone can limit access to structures behind it. Body size, the position of an organ, and the available acoustic window can also affect image quality. A limited scan describes a technical or anatomical constraint; it should not automatically be treated as proof that the underlying structure is normal.
Diagnostic ultrasound avoids X-ray radiation, but appropriate use still matters. Medical examinations are performed for a clinical purpose with suitable equipment and settings. Therapeutic ultrasound uses sound energy for treatment and is a different application. Describing all ultrasound as one completely interchangeable technique can obscure these distinctions and the precautions associated with particular procedures.
The report combines the examination findings with the reason the scan was requested. A clinician may compare the results with symptoms, laboratory tests, and earlier imaging before deciding what they mean. An image on a monitor is not a reliable self-diagnosis. When a scan cannot fully answer the question, additional assessment can be a sensible next step rather than evidence that the examination was pointless.
